Product Introduction

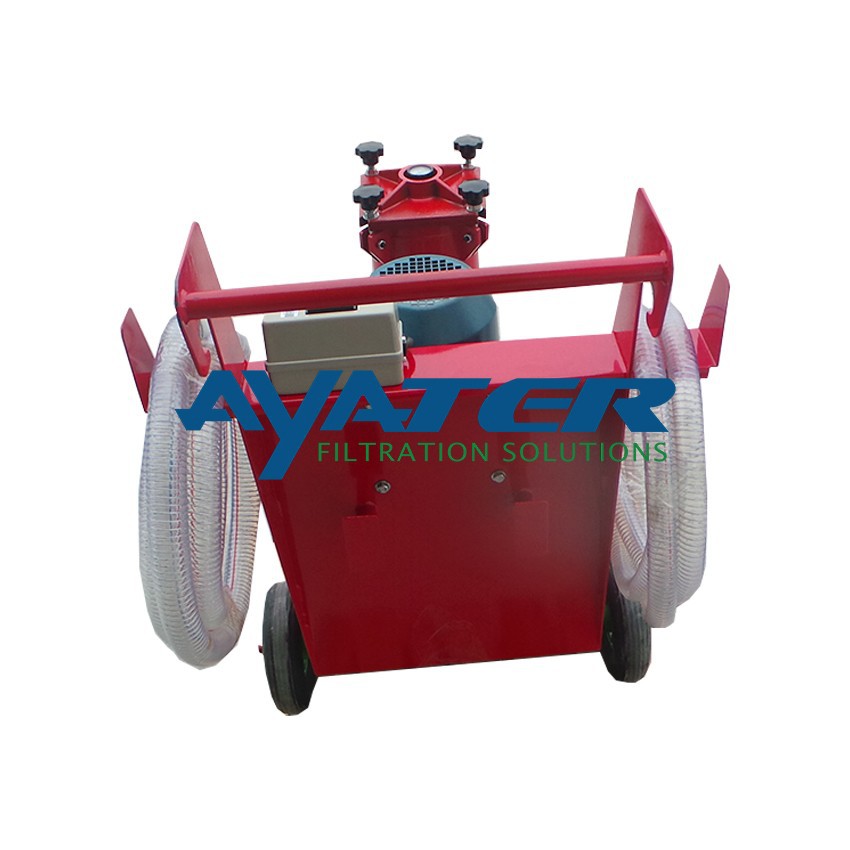

The filter pump transfer unit OFU is a mobile oil service unit and is used to filter oil when filling systems and when transferring hydraulic and lubricating fluids. It uses high-quality filters that remove particles as small as 3 microns. This ensures that the fluid being conveyed is free of impurities that can affect its quality and purity. The filter pump transfer unit OFU also has a compact and lightweight design, making it easy to transport and operate.
Product Structure
Technical Specifications
|
Product model |
OFU series |
|
Max. flow rate |
100 l/min |
|
Pump type |
Gear pump |
|
Operating pressure |
10 bar max |
|
Permitted suction pressure at suction port |
-0.4 bar to +0.6 bar |
|
Viscosity range |
15 to 1000 mm²/s |
|
Permitted operating fluid |
Mineral oil (others on request) |
|
Fluid temperature |
-10 to 80°C |
|
Ambient temperature |
-10 to 40°C |
|
Seals |
NBR (option: FPM) |
|
Length of power cable |
10 m |
|
Weight |
≈ 130 kg |
Features
- Designed to handle different types of fluids, from low viscosity to high viscosity.
- Made with high-quality materials that can withstand harsh environmental conditions, including high temperatures and corrosive substances.
- The use of high-performance gear pump ensures a large flow rate while mitigating the impact on the filter element.
- Filter elements with different precision can be installed according to specific needs to meet different filtration needs.
- It can be used for power hydraulic station system filtration in power plants, steel mills, paper and other industries.
Model code
Take OFU10P2N2B05B as an example for model code analysis:
Replacement elements
|
1300 R 003 BN4HC-/KB (-V-KB) |
1300 R 005 BN4HC-/KB (-V-KB) |
|
1300 R 020 BN4HC-/KB (-V-KB) |
1300 R 040 AM/-KB |
|
1300 R 003 BN/AM/-KB (-V-KB) |
2600 R 005 BN4HC/-KB (-V-KB) |
|
2600 R 020 BN4HC/-KB (-V-KB) |
2600 R 040 AM/-KB |
|
2600 R 010 BN/AM/-KB |
1300 R 010 BN4HC-/KB (-V-KB) |
|
1300 R 010 BN/AM/-KB (-V-KB) |
2600 R 010 BN4HC/-KB (-V-KB) |
|
2600 R 003 BN/AM/-KB (-V-KB) |
... |
