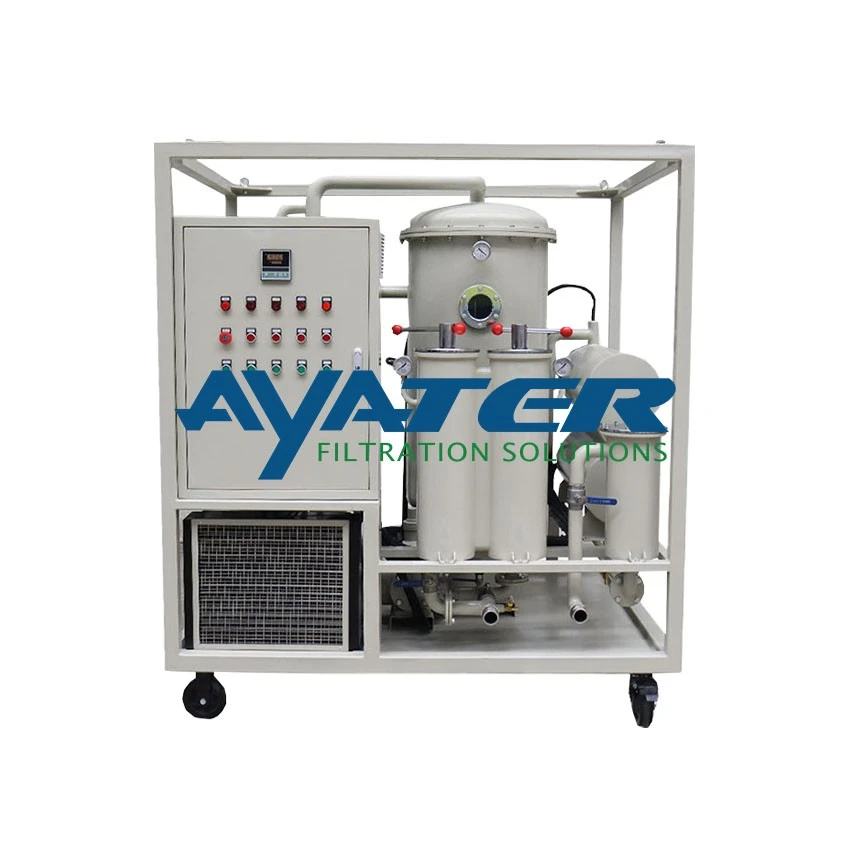

Transformer Oil Treatment Equipment

Transformer oil treatment equipment is designed to purify insulated transformer oil. Oil plays a key role in keeping power transformers running smoothly as it acts as both a coolant and an insulator. However, over time, it can become contaminated with moisture, solid particles, and other impurities, leading to degraded performance and even system failure.

To address these issues, transformer oil treatment equipment uses advanced filtration, dehydration, and degassing processes to remove impurities and restore the oil to its original state. Some of the key components of the equipment include the vacuum pump, heating system, and filter.

The purification process of such equipment typically involves several stages, each with a specific purpose, to purify and restore the fluid.

First, the oil passes through a coarse filter to remove large particles of impurities.

Heat the oil to remove any moisture or dissolved gases that may be present. This is usually done using specialized heating systems that are designed to heat the oil slowly and evenly, minimizing the risk of damaging the oil or system.

It is vacuumed to remove any residual gases or contaminants that may be present.

Finally, it passes through a fine filter to remove microscopic impurities and contaminants. Ensure that the fluid is thoroughly purified and put into service again.

• Two-stage or single-stage vacuum system to ensure high vacuum level in the vacuum chamber.
• High-quality components are used to ensure the reliability of the equipment.
• High-efficiency foam sensor to prevent large amounts of foam from being generated in the vacuum chamber.
• The PLC control panel can be set up for fully automatic operation.
• After on-site commissioning and factory testing, it can be used with confidence.
• Fully customizable options to meet the needs of specific projects.
