Products Description
Single bag filter vessels typically have a single filter bag and a single support basket to achieve the fluid purification process. Designed to remove dirt and other contaminants from 0.5-1000 microns, it is capable of meeting the needs of industrial water, coolant and chemical liquid handling.
Compared to multi-bag filters, the design is simple, the differential pressure is low, and it is economical. If you need to use it in a small application with a lower flow rate and are looking for cost-effectiveness, you can buy this product with confidence.
Technical parameters
|
Maximum Flow |
20-40 m³/h |
|
Pressure |
0.5 MPa |
|
Import/Export |
Φ63 mm |
|
Number of bags |
1 |
|
Material |
304 Stainless Steel |
|
Height |
1050 mm |
|
Diameter |
219 mm |
| Micron Rating | 0.5-1000 Micron |
Key Features
Micron-Level Accuracy
Remove particles as small as 0.5 microns-ideal for sediment, rust, and chemical contaminants.
Built to Last
304 stainless steel construction ensures corrosion resistance and durability in harsh environments.
Energy-Saving Design
Optimized flow path reduces pressure drop, cutting energy costs by up to 20% vs. standard filters.
Low Maintenance, High Uptime
Quick-release top cover design allows 5-minute bag replacement-minimize downtime.
Customizable for Your Needs
Choose materials (stainless/carbon steel), entry type (top/side), bag types and micron ratings.
Industry-Specific Solutions
Water Treatment
1. Remove sediment and rust in municipal/industrial wastewater.
2. Ideal for pre-filtration in reverse osmosis systems.
Food & Beverage
1. Achieve hygienic standards with FDA-compliant bags.
2. Remove particulates from syrups, oils, and brewing liquids.
Oil & Gas
1. Clarify drilling muds and refined fuels.
2. Durable construction for offshore/onshore harsh environments.
Energy & Utilities
1. Protect turbines and boilers from abrasive particles.
2. Filter cooling water and hydraulic fluids in power plants.

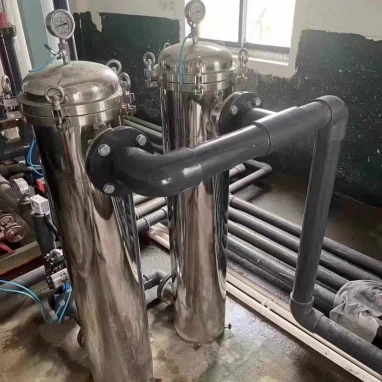

Customer site
Selection guide
- Selection of filter bags: According to the flow rate, viscosity and impurity content of the filtered liquid, the appropriate quantity and material are selected.
- Operating pressure: Select the appropriate bag filter vessel model and specification according to the actual operating pressure.
- Filtration area: The filtration area is determined according to factors such as flow rate, allowable pressure drop, operating pressure, etc.
- Bag change cycle: Calculate the bag change cycle by combining the solid content, flow rate and dirt holding capacity of the bag, so that it can be replaced in time.
Why Trust Us?
Our Advantages
Certified Quality
ISO 9001 compliant | CE certifications available.
"Reduced filter replacements by 40% in our wastewater plant." – A US wastewater treatment company.
"Zero leaks since installing single bag filter vessels on our paint production line." – A UK paint manufacturer.
24/7 Support
Free lifetime technical guidance via email, phone, or live chat.
.
