Products Description

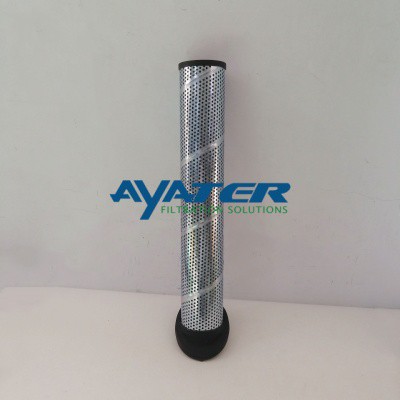

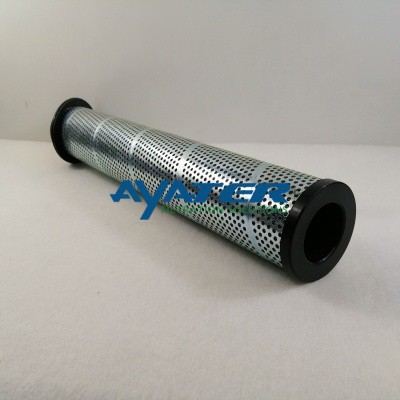

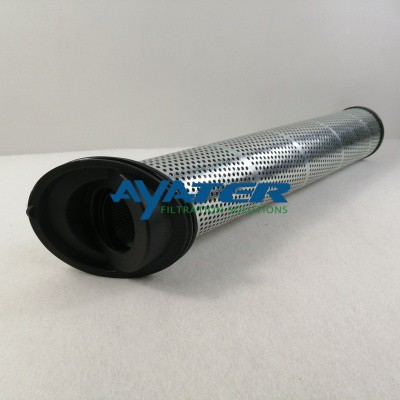

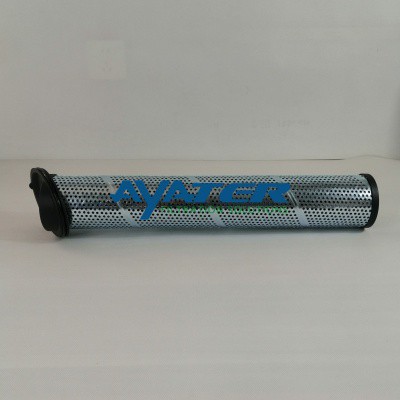

The 937406Q is a direct replacement hydraulic filter element designed for Parker Moduflow Plus series housings. This element provides reliable 5-micron filtration for low-pressure hydraulic systems, protecting components from particulate contamination. With its compact design and OEM-compatible specifications, it ensures easy installation and consistent performance.
Product details
 |
 |
 |
 |
Technical parameters
| Parameter | Value |
| Part Number | 937406Q |
| Height | ≈ 23 inches (592.8 mm) |
| Outer Diameter | ≈ 5 inches (126 mm) |
| Micron Rating | 5 μm absolute |
| Max Flow Rate | 25 GPM |
| Gasket Material | Viton / Fluorocarbon |
| Media Material | Microglass |
| Center Tube Material | Steel |
| Operating Temperature | -15℉ (-26℃) to 437℉ (225℃) |
| Housing Compatibility | Parker Moduflow Plus RFP / ILP / DILP / TFP series |
Key Features
✅ Absolute 5-micron filtration (β5 ≥ 200 efficiency)
✅ Microglass media for high dirt holding capacity
✅ Fluorocarbon (FKM) seal for wide temperature compatibility
✅ Double-length cartridge version for extended service life
✅ Integral bypass valve ensures protection under saturation
✅ Low pressure drop, optimized design for hydraulic / lube systems
Applications
- Industrial hydraulic return lines
- Mobile equipment filtration systems
- Machine tool hydraulic units
- Low-pressure suction applications
Similar models
|
940971Q |
937398Q |
941876 |
937677Q |
|
937397Q |
937399Q |
934229Q |
924792 |
|
937400Q |
941318Q |
932575 |
925039Q |
Why choose Us?
Why Our 937406Q Hydraulic Filter Element Stands Out
- Verified Filtration Accuracy – Guaranteed 5-micron absolute rating, batch-tested for consistency.
- Longer Service Life – Optimized media design extends replacement intervals.
- Perfect Fit – Machined to Parker Moduflow Plus housing tolerances for secure, leak-free installation.
- High Durability – FKM seals resist heat and aggressive fluids.
- Reliable Supply – ISO-controlled production with stable lead times and technical support.
