Product Introduction
The stainless steel sintered filter element is made from stainless steel and is sintered to create a robust porous structure that allows fluid to pass through while retaining solid particles, contaminants, and other impurities. It is resistant to corrosion and chemical damage and is suitable for most harsh industrial applications.

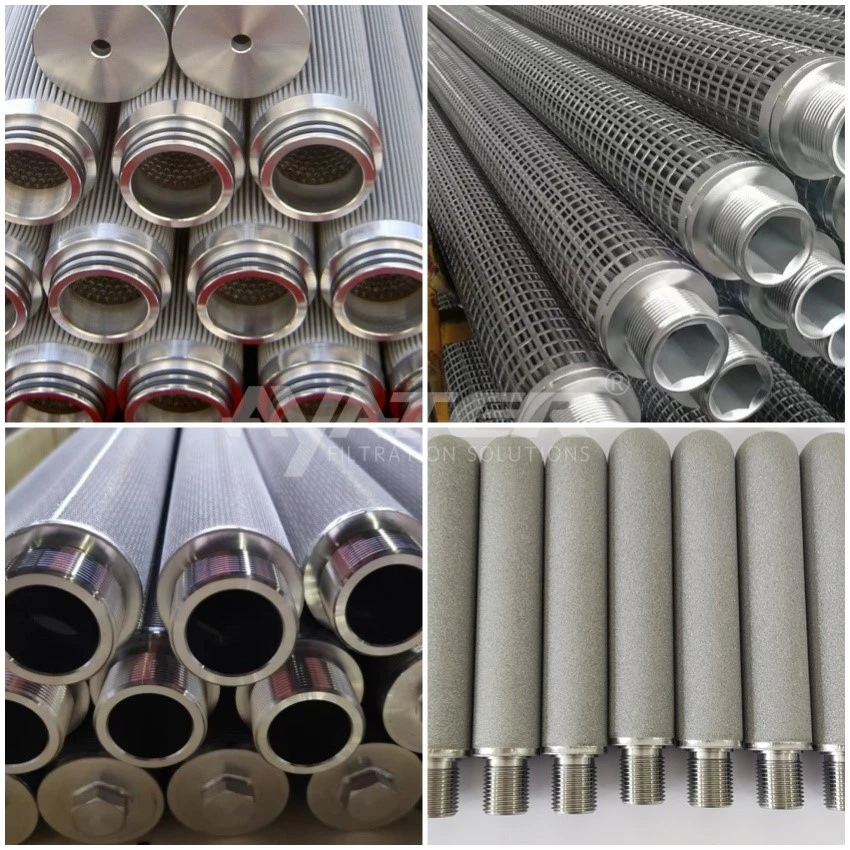

Filter Material
Technical Specifications
- Type: Sintered Metal Filter Cartridge, Stainless Steel Pleated Filter Cartridge, Stainless Steel Wire Mesh Filter Cartridge, Pleated Mesh Filter Cartridge, Sintered Metal Porous Filter Element, etc
- Filter material: 304, 316, 316L stainless steel, specified materials are available
- Gasket material: Silicone, EPDM, Viton, PTFE, etc
- Connection: DOE, Thread, Flange, SOE, 222, 226, etc
- Length: 10, 20, 30, 40 inches
- AYATER offers a variety of options that can be selected or customized according to the specific application requirements.
Features
High temperature resistance. Stainless steel sintered filter elements can withstand temperatures up to 800°C without damaging or losing filtration efficiency. This makes it ideal for applications involving high-temperature fluids or gases, such as chemical processing, power generation, and oil and gas refining.
Pressure resistance. It can cope with high-pressure conditions without deformation or collapse. This means it can be used in applications that require high flow rates and pressure drops, such as hydraulics, water treatment, and air filtration.
Easy to clean and maintain. It can be backwashed, chemically cleaned, or thermally regenerated without damaging the structure or reducing filtration efficiency. This means that it can be reused and cost-effective.
Workshop
About Us
FAQ
Q: How do I choose the right porosity for my sintered filter element?
A: Porosity depends on the size of particles you need to filter out. Smaller pore sizes filter finer particles but may reduce flow rate.
Q: What is the working principle of stainless steel sintered filter element in water treatment?
A: It combines surface and depth filtration. The porous sintered metal medium forms tortuous micro-channels. When water passes through, most solid particles are trapped on the outer surface, while finer contaminants are captured inside pores. Clean water flows through, and the element can be regenerated via backwashing.
