Products Description
Machine Tool Mist Collection is a system designed to collect and treat oil mist generated by machine tools. Machine tools generate a large amount of oil mist during high-speed cutting, grinding and other operations. This floating oil mist can be hazardous to the health of shop floor operators, as well as affecting machine life and productivity. The oil mist collector can avoid a series of problems, the oil mist particles suspended in the air will be captured and purified, and ultimately will meet the standards of air emissions. According to different oil mist treatment can be installed with different filtration levels, targeted, with high filtration efficiency, long service life and other effects.
Working principle
When the controller is turned on, the suction port generates a strong negative pressure forcing the oil mist to be directed into the suction mist absorber. The oil mist particles collide under the action of the wind wheel inside the oil mist purifier, and the tiny particles are gathered into larger particles that can be controlled, and are intercepted under the blockage of the highly efficient mist absorbing materials, and are collected and recycled through the reflux port.
Technical parameters

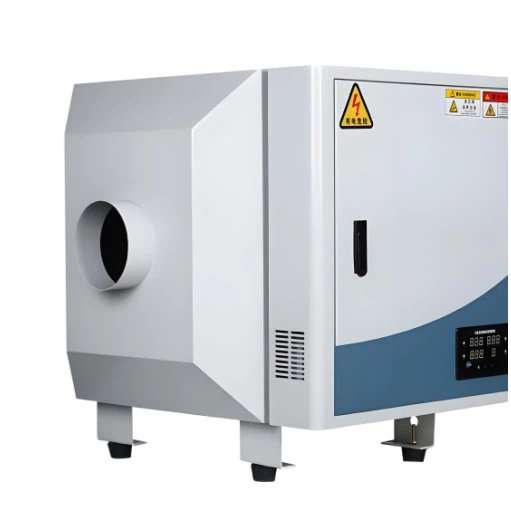

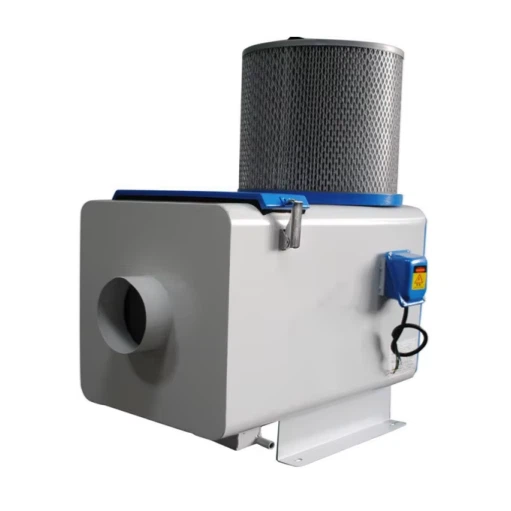

Product Pictures
| Brand | AYATER |
| Oil Return Port Diameter | 16mm |
| Noise dB(A) | 65±2 |
| Noise | Silent and vibration-free |
| Purification Rate | 99% |
| Rated Voltage | Three-phase 380V |
| Air volume | 600m³/h ~1800m³/h, etc |
| If you want to know the specific parameters, you can contact us and the full version will be sent to your email! | |
Product advantages
- Separates and recovers oil mist from the air, reducing harmful emissions.
- Its built-in high-efficiency impeller ensures the stable operation of the unit, which can be used for a long time without any trouble.
- The vibration-damping design and low-noise motor make the noise during operation be effectively minimized.
Application field
- Metal Cutting
- Grinding and Polishing
- Centralized Workshop Decontamination
- Roller Mill Operation
- Frying Line Purification
- Ink Volatiles Treatment
- Diesel Generator Exhaust Treatment
Customer site
