Core Value

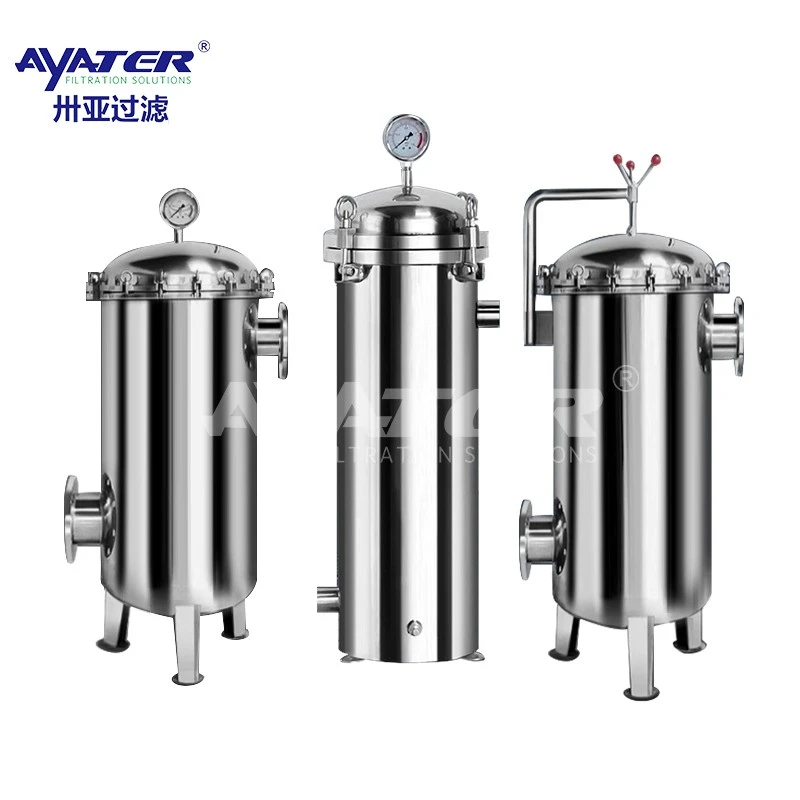

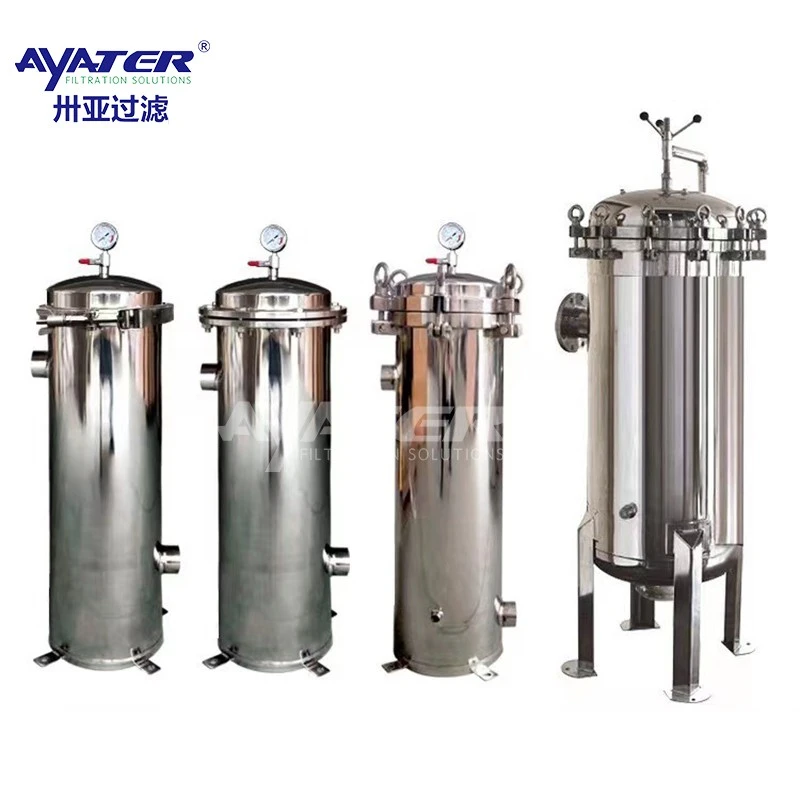

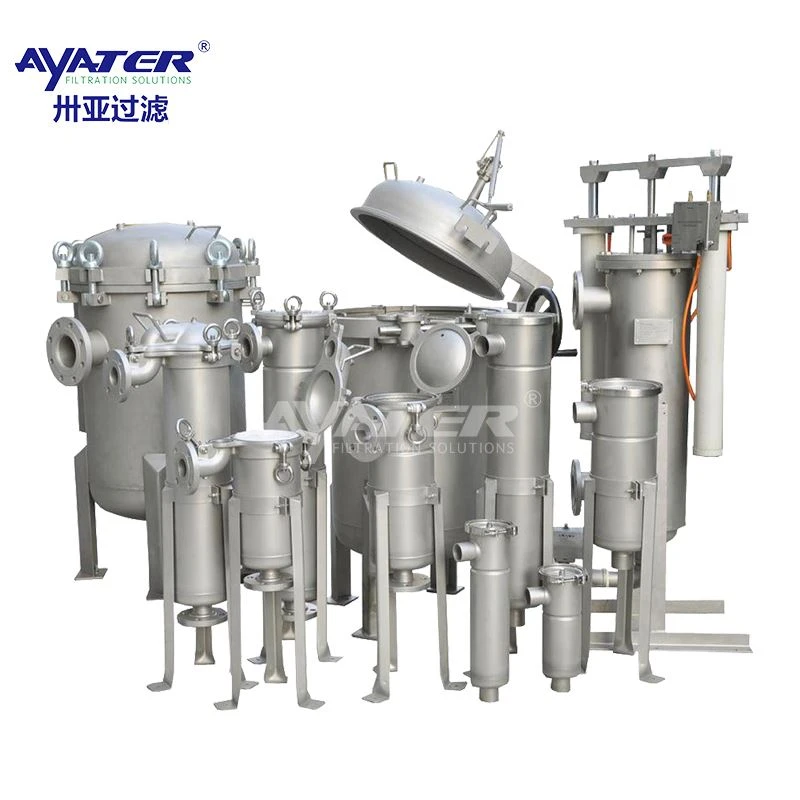

Engineered for continuous heavy-duty liquid processing, the SYCF-DS18-2# 304 Stainless Steel 18 Bag Multi-Filter Housing provides high-flow efficiency up to 540 m³/h. Built with corrosion-resistant 304 stainless steel, this robust vessel optimizes fluid clarity while minimizing downtime in large-scale industrial filtration systems.
Core Features & Selling Points
High-Flow Capacity with Low Pressure Drop: Utilizing an 18-bag configuration with a CN300 inlet, this industrial bag filter vessel accommodates flow rates up to 540 m³/h, minimizing process downtime and energy consumption.
Corrosion-Resistant 304 Stainless Steel Construction : Manufactured from premium 304 stainless steel, the vessel offers high structural integrity and chemical compatibility for processing aggressive industrial fluids and water.
Ergonomic Maintenance & Quick Bag Replacement : Designed with precise nozzle height (C: 1340 mm) and standard Size 2# filter bags, operator safety and maintenance efficiency are significantly improved during media changeouts.
Technical Specifications
| Specification Parameter | Metric Value |
| Model Number | SYCF-DS18-2 |
| Material Grade | 304 Stainless Steel |
| Filter Bag Quantity | 18 Bags |
| Filter Bag Size | Size 2 |
| Design Flow Rate | 540 m³/h |
| Vessel Outer Diameter A | 1600 mm |
| Vessel Height B | 600 mm |
| Total Height H | 2150 mm |
| Flange Outer Diameter D | 1100 mm |
| Flange Bolt Pitch Circle F | 150 mm |
| Inlet Center Height C | 1340 mm |
| Inlet Size | CN300 |
Field Applications

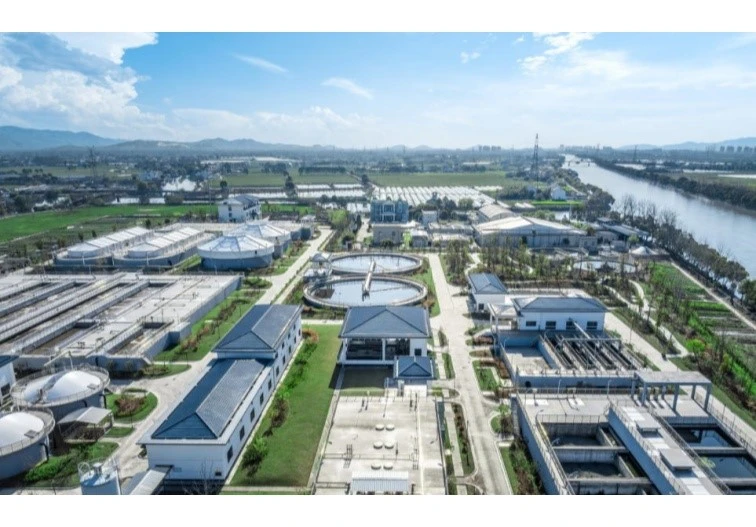

Ideal for large-scale pre-filtration in industrial wastewater, surface water clarification, and reverse osmosis (RO) system protection.

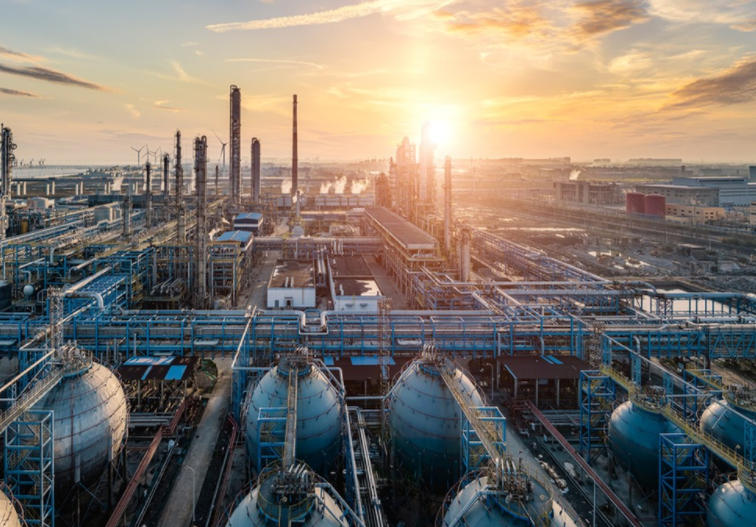

Chemical Processing
Applied in the filtration of liquid raw materials, solvents, polymer solutions, and acidic/alkaline process fluids.

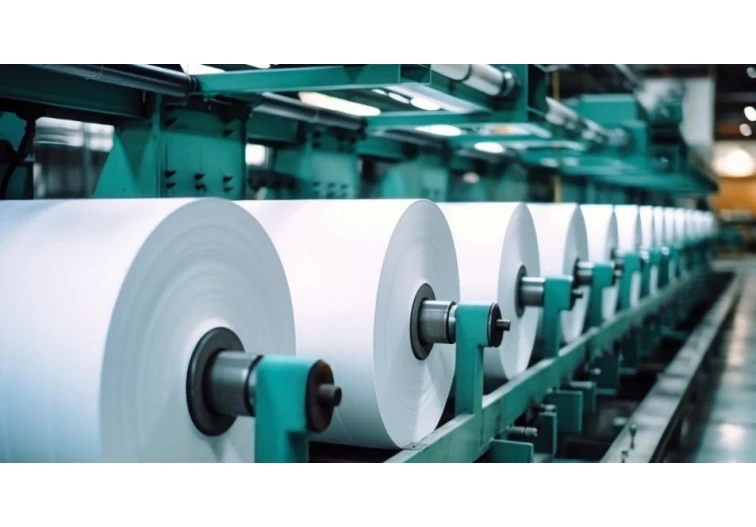

Paper & Pulp Manufacturing
Used to remove suspended solids, fibers, and impurities from process water and white water recycling loops.
ISO 14001
ISO 9001
cE
SGS
Customer Case Study
Challenge: The facility experienced frequent filter bag clogging and excessive pressure drops with their older 6-bag filtration units during raw material clarification, leading to frequent line shutdowns.
Solution: Upgraded to the SYCF-DS18-2# 304 Stainless Steel 18 Bag Multi-Filter Housing with a design flow rate of 540 m³/h and CN300 connection.
Result: Filter changeout intervals increased by 220%, overall process pressure drop decreased by 35%, and annual system maintenance downtime was reduced by over 140 hours.
Technical Knowledge & Engineering Insights
Multi-bag filter housings serve as crucial mechanical separation barriers in liquid-solid process filtration. Fluid enters through the CN300 inlet into the upper plenum, distributing evenly into the 18 individual filter bags. Contaminants are retained inside the filter bags, allowing clean filtrate to discharge through the downstream outlet. Sizing the vessel to maintain fluid velocity below 1.5 m/s across the internal basket interface significantly reduces turbulence, prolongs filter bag service life, and maintains consistent volumetric efficiency across high-flow hydraulic loops.
