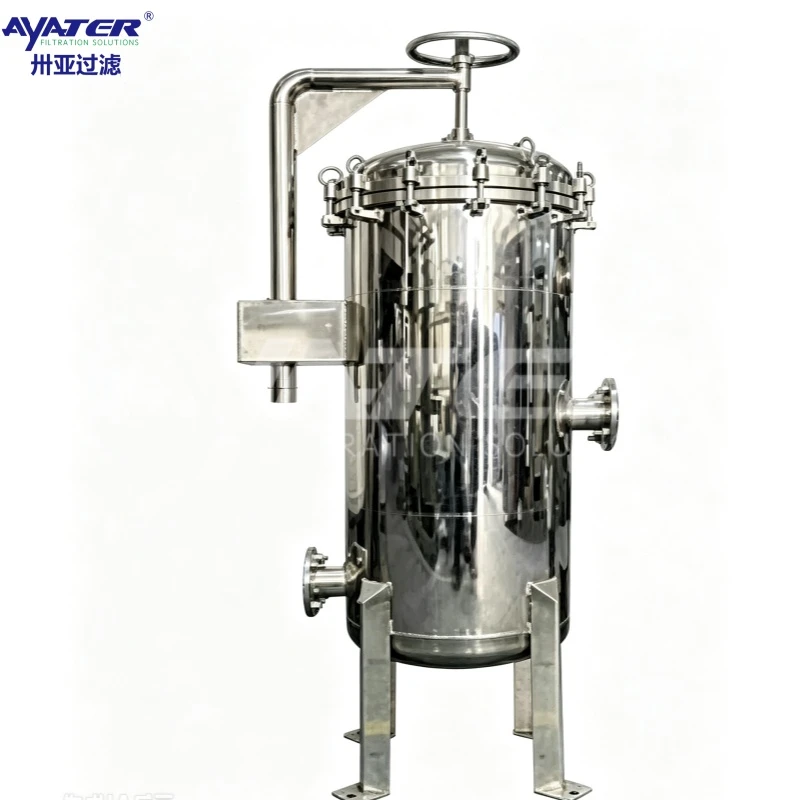

20 Cartridge Housing For Liquid Filtration – DN80 Flange

1. High-Density 20-Cartridge Configuration

Twenty 40" cartridge positions maximize filtration surface area within a single vessel, reducing floor space requirements compared to multiple smaller housings. Ideal for water treatment and chemical processing facilities with limited equipment footprint.

2. DN80 Flanged Connections with 3mm Wall Thickness

Standardized DN80 flanged inlet/outlet connections facilitate straightforward integration with existing piping infrastructure. The 3mm shell construction provides structural integrity for continuous industrial operation across power generation and petrochemical applications .

3. 30 m³/h Rated Flow Capacity

Engineered for 30 cubic meters per hour throughput, this housing supports medium-to-high volume liquid filtration demands. Particularly suited for steel mill cooling water loops and paper mill process water where consistent flow is critical .

Process Water Filtration System Upgrade – Large-Scale Paper Mill, South China

Background & Pain Points: The mill previously operated six single-cartridge housings in parallel, processing approximately 25 m³/h. Cartridge changeouts every 72 hours drove escalating maintenance costs. Uneven flow distribution across parallel units caused premature breakthrough in certain housings, compromising paper machine shower water quality.

Solution: A single 20 Cartridge Housing for Liquid Filtration – DN80 Flange replaced the existing parallel configuration. Fitted with 40" cartridges, total filtration area increased to 3.2 times the original system. DN80 flanged connections directly integrated with existing main piping, requiring no system re-piping.
