Product Overview

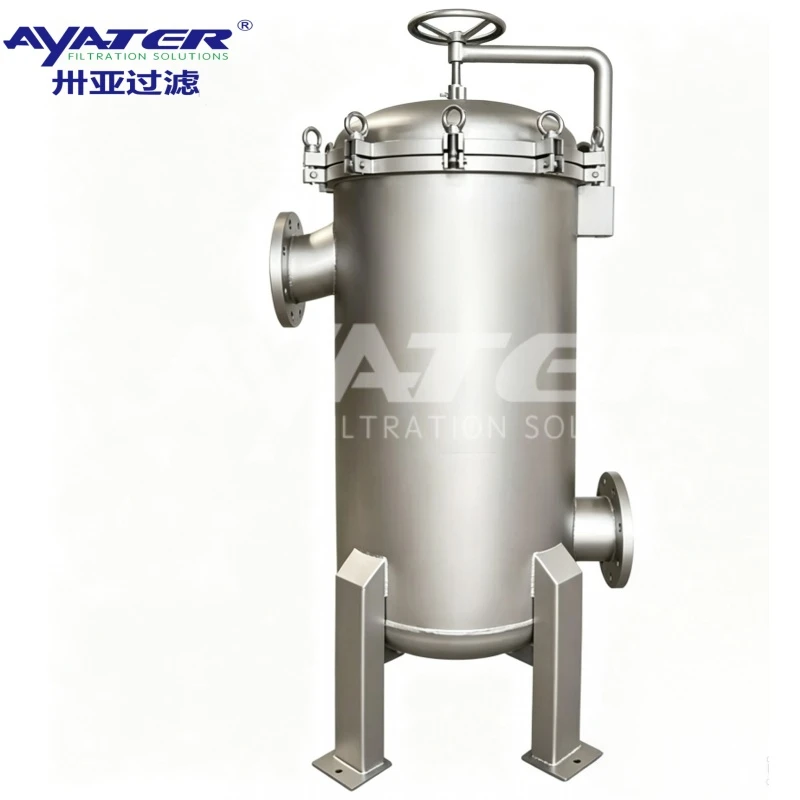

SYB-4-25X is configured with 25 cartridge positions inside one vertical vessel, providing a practical solution for filtration systems that require multiple filter elements within a single housing. The design supports 40-inch cartridges and DN100 flange connections for industrial process integration.
Key Features
25 Cartridge Installation Capacity
Unlike smaller cartridge arrangements, this model provides 25 installation positions, allowing engineers to configure filtration capacity within one vessel rather than combining multiple smaller housings.
Vertical Vessel Configuration
The vertical pressure vessel layout reduces installation space requirements while maintaining access for cartridge replacement.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SYB-4-25X |
| Type | Multi Cartridge Filter Housing |
| Structure | Flanged Type |
| Cartridge Quantity | 25 pcs |
| Cartridge Length | 40 inch |
| Inlet & Outlet | DN100 |
| Dimension | Φ450 × 1700 mm |
| Shell Thickness | 3 mm |
| Flow Rate | 40 t/h |
| Material | Carbon Steel / SS304/SS316 |
ISO 14001
ISO 9001
CE
SGS
About Ayater
Ayater specializes in industrial filtration equipment manufacturing, including cartridge filter housings and filter elements. With professional production lines, inspection processes, and engineering support, Ayater provides reliable filtration solutions for global industrial customers.
