Products Description

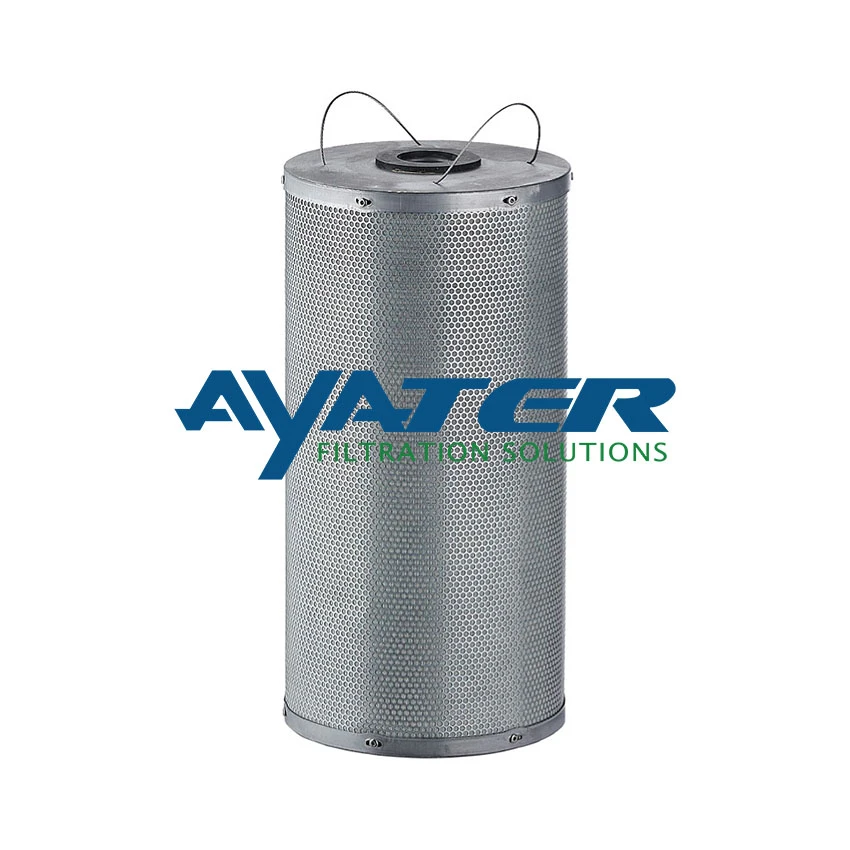

The amine carbon filter uses a specialized activated carbon media to remove particulate contaminants, degradation by-products and organics from circulating amine solutions such as MEA, DEA and MDEA used in gas sweetening units. Available in both pellet and carbon block form, with mesh sizes ranging from 4×10 to 8×30, and in a cartridge/canister configuration, these elements provide over 90% removal of heat-stable salts and particles as small as 5 µm.
Product Structure
The key components of the amine activated carbon filter are as follows:
- Top and Bottom Caps (Sealing): Controls fluid flow in and out to ensure a tight seal.
- Perforated Core: Guides the fluid to spread evenly and prevents the activated carbon from clogging.
- Activated Carbon Layer: Core filter media for adsorption of amines.
- Outer Support: Protect the tank and provide mechanical strength and corrosion resistance.
Key features
High Adsorption Capacity
Iodine number ≥ 900 mg/g ensures superior removal of organics and heat-stable salts.
01
Low Dust & Leachables
Acid-washed carbon with minimal ash (< 10 %) and moisture, reducing system contamination.
02
Catalytic Nitrogen Sites
Enhanced breakdown of amine degradation products, extending solvent life by up to 30 %.
03
Graded Porosity
Upstream coarse pores capture larger particulates; downstream fine pores remove sub-5 µm solids.
04
Technical parameters
| Product Type | Amine Carbon Filter |
| Filter Material | Activated Carbon 8 X 30 MESH |
| End Cap Material | Tin-Plated Steel |
| Body Material | Tin-Plated Steel |
| Maximum Operating Temperature | 148℃ |
| Flow Direction | Outside-to-Inside |
| Application | Liquid Adsorption |
| End Cap Configuration | DOE-Double Open End |
| Pressure Rating | Up to 10 bar (depending on housing) |
| Filtration Fineness | 10 µm upstream; 5 µm downstream |
| Industry | Oil & Gas Refineries, Natural Gas Processing, Chemical Plants, etc |
Real Customer Cases
Installed granular 8×30 activated carbon canisters, reducing amine foaming incidents by 60 % and extending re-carbonization intervals from monthly to quarterly.
Deployed carbon block cartridges (5 µm) in deaerators, reporting 99 % removal of fine sulfides and a 25 % drop in contactor downtime.
Installed amine carbon filters reduced CO₂ emissions by 12,000 tons/year, with 95% regeneration efficiency over 15 cycles.
Achieved 99% CH₄ purity by removing 98% H₂S and 96% CO₂ using modular filter units.
