Products Description
Quick-open bag filter housings are designed for fast, trouble-free filtration of liquids in demanding industrial environments. Its V-clamp closure system opens/closes the lid in seconds, reducing downtime during filter bag changes or maintenance. Ideal for high-flow applications (up to 2400 GPM) that require frequent filter changes, this housing ensures seamless integration into systems for water treatment, chemical processing, food production and more.
Product Details
Rapid-Access Design

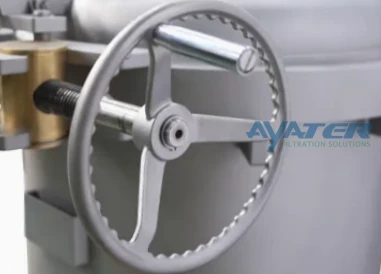

Screw drive
Internal structure
Liquid outlet
features
Rapid-Access Design
V-Clamp Mechanism: Open/close the lid in under 30 seconds-no tools required.
Quick-Open Cover: Secure sealing with a screw drive system to prevent leaks (tested up to 1.5 MPa).
01
Durable Construction
Material Options: Choose corrosion-resistant 304/316L stainless steel for harsh chemicals, carbon steel for cost efficiency, or custom alloys.
Heavy-Duty Legs: Adjustable height (range: 6–12 inches) for uneven floors or alignment with existing pipelines.
02
Precision Filtration
Micron Range: 0.5–1000 microns for removing particulates, sediments, or microorganisms.
Seal Integrity: Each bag has a dedicated support basket and locking ring to prevent bypass.
03
Safety & Compliance
Interlocking Safety System: Prevents accidental opening during operation (CE-certified).
Mirror-Polished Finish: Meets FDA standards for food, pharma, and beverage industries.
04
Technical parameters
| Flow Rate | Up to 2400 GPM (side-in/side-out or side-in/bottom-out configuration) |
| Working Pressure | 0–1.5 MPa |
| Connections | Flange, butt weld, or threaded |
| Bag Capacity | Up to 40 bags; customizable for large-scale systems |
| Surface Treatment | Electropolished or passivated for hygiene-critical applications |
| Micron Rating | 0.5-1000 microns |
| Bag Material | Stainless steel, PE, PP, nylon or PTFE |
applications
Water Treatment Plants
Challenge: Rapid silt removal during stormwater surges.
Solution: Deploy 10-bag housings with 50-micron PP bags for continuous operation.
Food & Beverage Production
Challenge: Filtering viscous syrups without contamination.
Solution: Use PTFE bags and mirror-polished 316L housing for USDA compliance.
Chemical Manufacturing
Challenge: Handling corrosive solvents at high temperatures.
Solution: 316L housing with side-in/bottom-out flow to reduce residue buildup.
