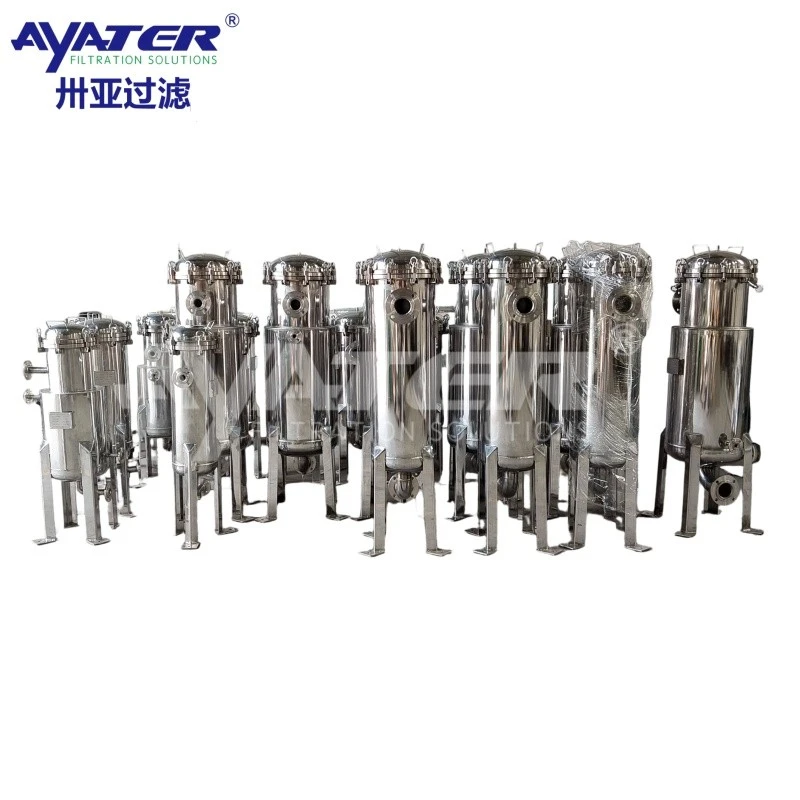

DN100 Stainless Steel Cartridge Filter Housing, Swing‑arm Opening

DN100 Stainless Steel Cartridge Filter Housing, Swing‑arm Opening

Ayater DN100 stainless steel cartridge filter housing supports industrial pre-treatment and filtration across various industries. It removes impurities, sediment, suspended solids and bacteria from process fluid. This multi-cartridge pressure vessel provides reliable performance for water treatment. Contact Ayater for technical specifications and quotation.

Product Overview

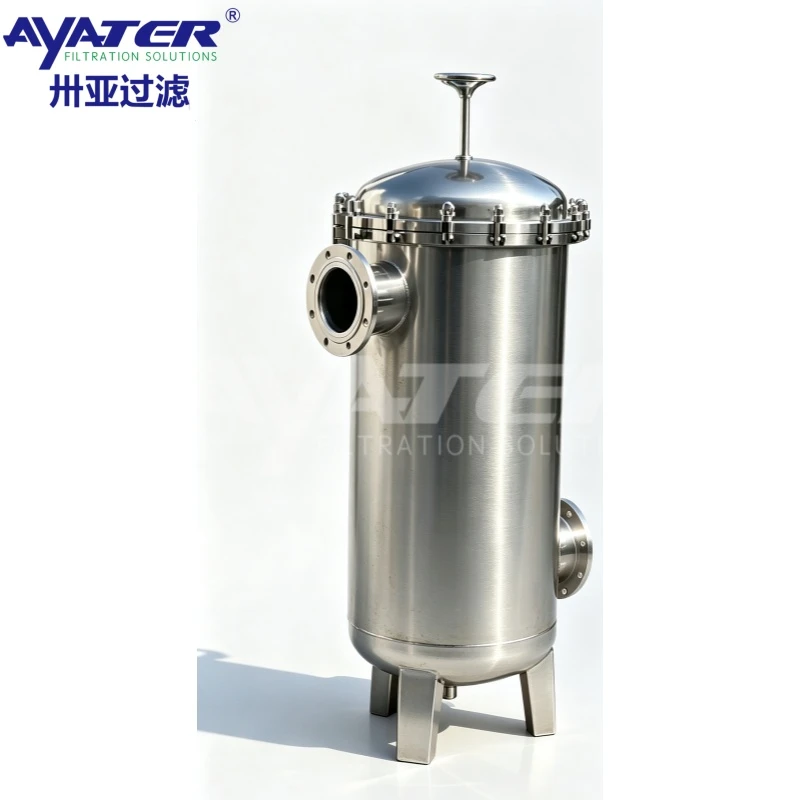

The DN100 stainless steel cartridge filter housing with swing‑arm opening (model SYB-4-35X) features an integrated jib crane structure for facilitated lid handling. This model accommodates 35 cores of 40-inch filter elements, delivering a nominal flow rate of 55 T/H. Constructed from SS304 stainless steel with 3mm wall thickness and DN100 flange connection, it is designed for RO pretreatment, industrial water treatment, and process water filtration applications. The swing‑arm opening enables single-operator maintenance, reducing downtime during element replacement.

Working Principle

Ayater stainless steel cartridge filter housing cutaway diagram showing fluid filtration principle

The cartridge filter housing adopts formed filter media. Under pressure, raw fluid enters the stainless steel housing through the raw fluid inlet and flows toward the multitube filter cartridges.

As the raw liquid passes through the filter cartridges, contaminants including suspended solids, sediment, rust and bacteria are trapped on the outer wall of filter cartridges.

The purified clean filtrate permeates through the filter media and flows out from the clean filtrate outlet.

This process effectively removes impurities, sediments, suspended solids and bacteria from the fluid to achieve the purpose of filtration.

Key Technical Specifications

Parameter  Specification
Inlet / Outlet  DN100
Vessel Size  Φ550 × 1800 mm
Wall Thickness  3 mm
Structure  Flange + Swing‑arm (Jib Crane)
Filter Elements  35 cores
Element Size  40″
Nominal Flow Rate  55 T/H
Housing Material  SS304 Stainless Steel
Connection Type  DN100 Flange (Standard / Loose)

Structural Features

  • Swing‑arm Opening (Jib Crane) - The SYB-4-35X incorporates an integrated swing‑arm mechanism that supports the top cover during opening and closing. This design enables a single operator to safely perform element replacement, minimizing labor requirements and service time.
  • DN100 Flange Connection - Standard flange or loose flange options are available.The DN100 flange design provides secure sealing for industrial operating conditions.
  • SS304 Stainless Steel Construction - The housing is fabricated from SS304 stainless steel . This material offers resistance to corrosion in water treatment and chemical process environments.

Typical Applications

Water Treatment

  • RO / UF pretreatment, condensate polishing, circulating cooling water filtration.

Industrial Manufacturing

  • Process water filtration, cooling water systems.

Chemical Industry

  • Process liquid filtration.

ISO 14001


CE


ISO 9001

SGS

SGS

Quality Assurance

Each SYB-4-35X unit is subject to:

Pressure test - verification of housing integrity under design pressure conditions

Sealing performance test - confirmation of leak‑free flange and closure seals

Dimensional inspection - verification against engineering drawings

Surface quality inspection - visual inspection of welds and surface finish
