Key Advantages
- High-Precision Protection: Standard equipped with high-retention melt-blown or pleated cartridges, effectively removing suspended solids, colloidal particles, and fine impurities above 1-5μm.
- Optimized Flow Structure: Low-resistance flow channel design ensures uniform liquid distribution, minimizing pressure drop and saving energy.
- Reliable Sealing : Fitted with high-quality O-rings .
- Long Service Life : Tested rigorously under continuous high-load operating conditions to guarantee high reliability and easy maintenance.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SYB-4-30X |
| Product Type | Multi Cartridge Filter Housing |
| Filter Quantity | 30 Cartridges |
| Cartridge Length | 40 inch |
| Inlet / Outlet Size | DN100 |
| Connection Type | Flange |
| Vessel Diameter | Φ500 mm |
| Material | Carbon Steel / Stainless Steel 304 / 316 |
Our Certificate
ISO 14001
ISO 9001
CE
SGS

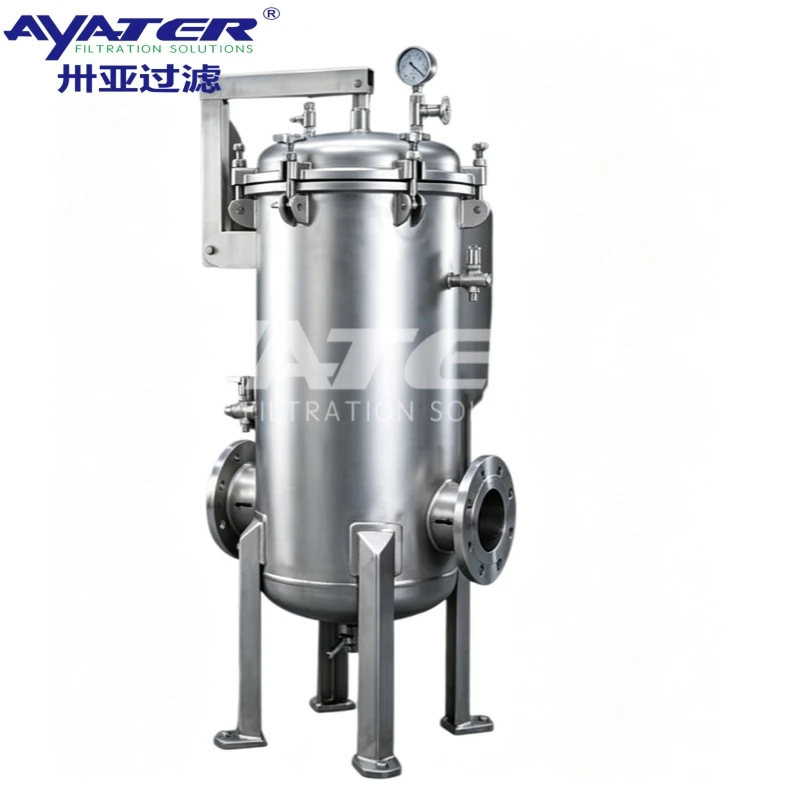

Structural Feature: Why Choose a "Davit Arm" Design?
For vessel housings with an outer diameter of φ500mm and 3mm wall thickness, the top flange cover is quite heavy. The SYB-4-30X comes equipped with a manual Davit Arm Mechanism. When replacing the 30 internal filter cartridges, maintenance personnel do not need to lift the heavy lid manually; simply loosen the bolts and swing the davit arm smoothly. This significantly reduces labor intensity and enhances operational safety.
Selection Guide & Applications
1. Typical Applications
- RO System Pre-treatment: Serves as pre-filtration for 40–50 t/h Reverse Osmosis systems to protect RO membranes from physical scratching.
Industrial Cooling Water: Side-stream filtration for large cooling water loops in steel mills, power plants, or chemical facilities.
- Chemical & Oil Filtration: Particle removal for cutting fluids, solvents, and liquid chemicals.
2. Engineering Tips
Flow Margin Advice: If your operational flow rate is between 35-42t/h, SYB-4-30X (45 t/h) is an optimal fit. If it exceeds 50 t/h, consider upgrading to SYB-4-35X (55 t/h).
Pressure Drop Warning: Initial clean pressure drop is around 0.02 -0.05 MPa. Replace all 30 filter cartridges when the pressure differential reaches 0.15MPa.
Related Products
Smaller capacity option: SYB-4-20X Security Filter Housing (30 t/h, DN80)
Matching Consumables: High-Flow PP Melt-Blown / Pleated Filter Elements
