Products Description

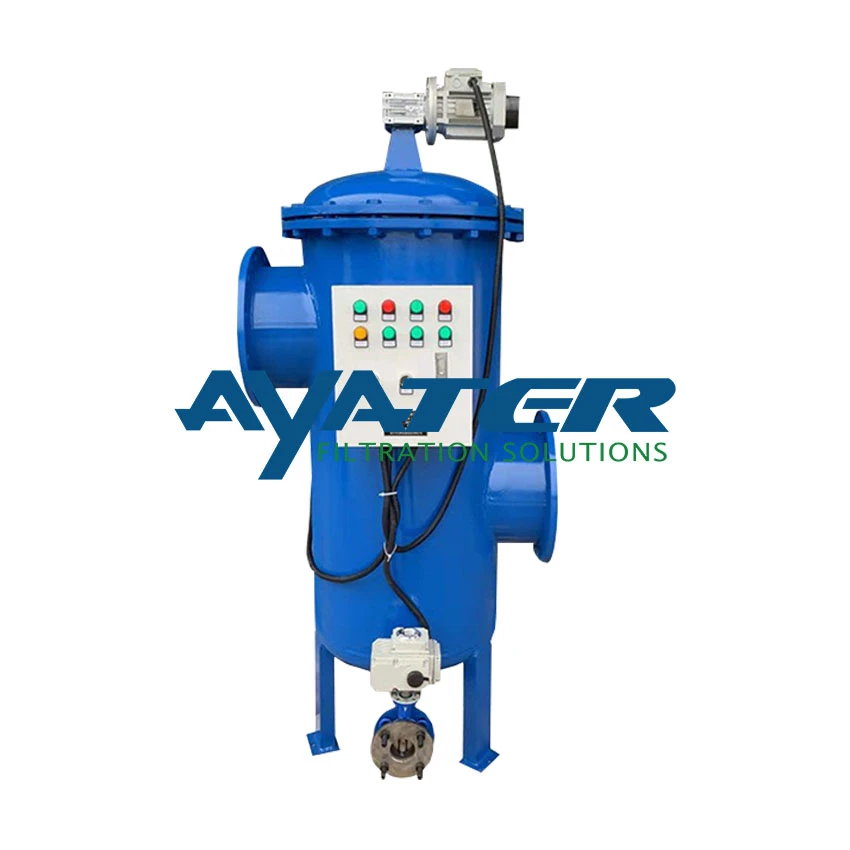

Self cleaning scraper filters use mechanical scraping to remove impurities and contaminants automatically or manually, and are especially suitable for handling highly viscous liquids. It is available in a variety of different designs for in-line installation and can also be used as a bypass device. Customization options ensure a high degree of flexibility and filtration efficiency in the process.

Technical parameters

Filter Size	Customized
Maximum Flow Rate	1.5-110 m³/h
Working Pressure	0.1-1.6 MPa
Inlet and Outlet Nominal Diameters	DN50-DN20
Drain Outlet Nominal Diameter	DN25-DN50
Operating Temperature	0-200 ℃
Micron Rating	25-3000 µm
Filtration Area	2200-5600 cm²
Electronic Control Parameters	0.37KW, 380V/50Hz/three-phase
Scraper Material	SS304, SS316L, Stainless Steel Wire
Filter Element Material	SS304, SS316L
Filter Housing Material	Carbon Steel, SS304, SS316L, Customized

Working principle

Self cleaning scraper filters are usually composed of housing, scraper, filter element, motor, water inlet and outlet, sewage valve, control panel and other components. Together, these components enable an efficient fluid purification process.

When contaminated fluid enters the equipment through the inlet, impurities and contaminants are intercepted by the filter element (such as wedge-shaped mesh) and clean fluid flows out of the outlet. With the continuous accumulation of impurities, when the pressure difference between the inside and outside of the filter reaches the set value, the scraper driven by the motor starts to work automatically. It rotates close to the surface of the filter screen to scrape off the contaminants and discharge them through the drain valve.

In addition to utilizing the differential pressure, the time can be set for automatic cleaning and blowdown. If you want to do it manually, you can adjust the specific parameters on the control panel.

Schematic diagram of the structure

Schematic diagram of pipeline installation

features

Continuous, automatic cleaning is achieved without having to stop the operation.
Fully detachable filter elements for quick and easy maintenance.
Rugged and easy-to-use housing that withstands a wide range of operating conditions.
Fully automatic or manual drive options are available for maximum flexibility.
Advanced PLC control system, easy to operate and monitor.
Each product is strictly tested and controlled to ensure its effectiveness and quality.
